E-MASTER ROV

Compact smart AI ROV

INSPEKTION | MEASUREMENT | SURVEY

The E-MASTER ROV is a revolutionary industrial AI underwater robot, engineered for high-precision measurements, inspections, and surveys in complex marine environments. With advanced sensors and sonars, it ensures unmatched accuracy and reliability. Its modular design allows for quick and efficient component changes, including accessory swaps and power replacements.

E-MASTER ROV

E-MASTER STANDARD ROV

E-MASTER PLUS ROV

E-MASTER NAVI ROV

Industries

Underwater Construction & Inspection
Shipping & Maritime
Tank & Pipeline Inspections
Offshore Energy

Professions

Surveyors & Inspectors
Engineers & Technicians
Environmental Scientists
Marine Researchers

Reliable in inspections strong currents

~

Easy-to-repair tool for extended inspections

~

Hassle-free subsea measuring, surveying, navigation capability

~

Daily/ weekly monitoring solution

~

Reliable in inspections strong currents ~ Easy-to-repair tool for extended inspections ~ Hassle-free subsea measuring, surveying, navigation capability ~ Daily/ weekly monitoring solution ~

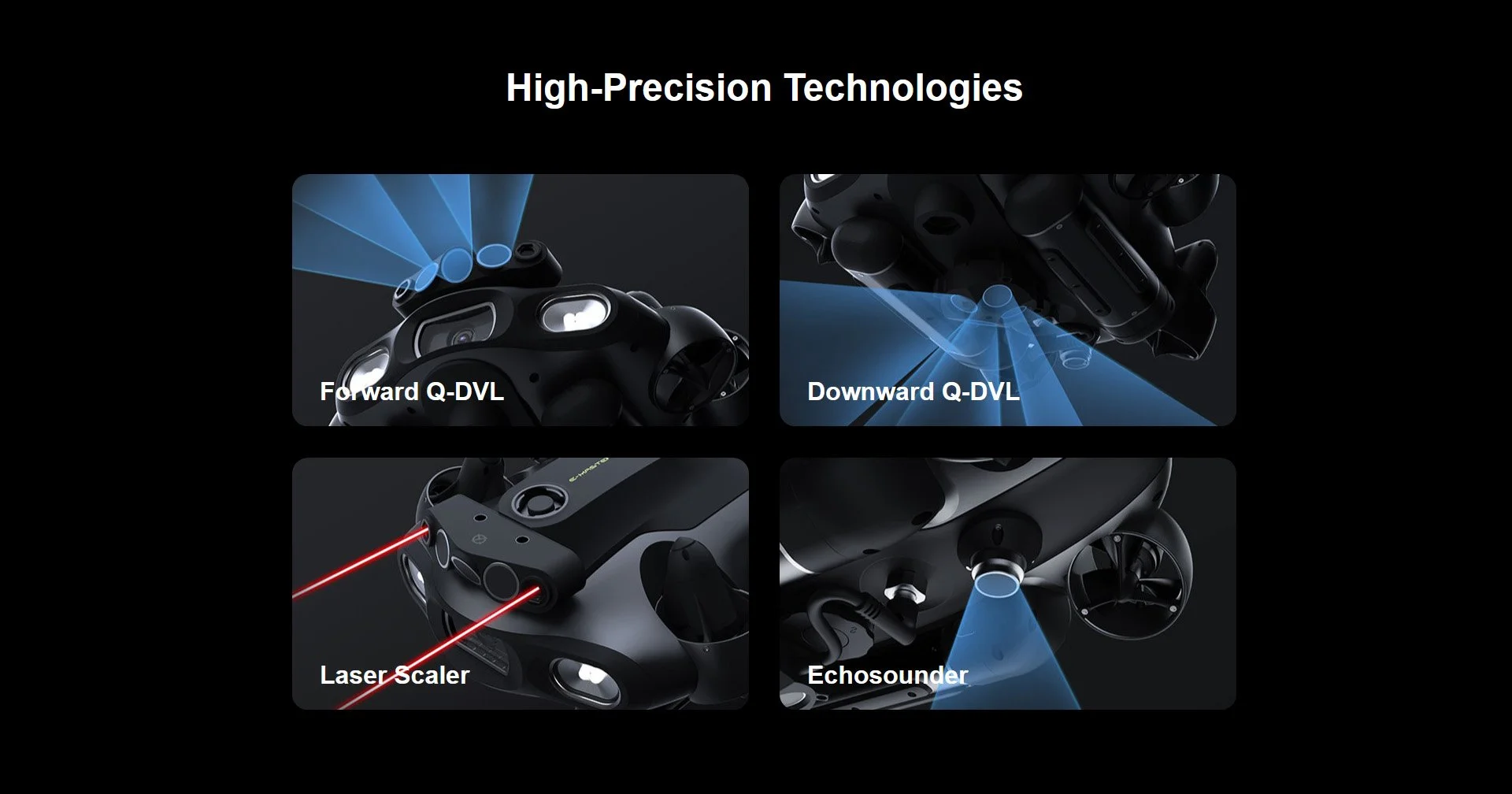

High-Precision Technologies

DVL

Dynamic & Steady Hovering
U-INS

Underwater Automatic Navigation
QY-MT

Real-time & Offline Smart Measurement
QY-BT

2D & 3D Seafloor Mapping

DVL

Dynamic & Steady Hovering

The E-MASTER features forward and downward Q-DVLs for stable hovering and strong omnidirectional flow resistance of up to 3 knots. It remains stable in turbulent conditions and supports functions like collision avoidance, distance measurement, and altitude maintenance. The system automatically prevents collisions with obstacles, ensuring safety during underwater operations while maintaining distance from objects and height from the seabed.

U-INS

TSubsea Automatic Navigation

The U-INS system delivers advanced autonomous navigation for the FIFISH E-MASTER by utilizing deep learning and sensor data to provide precise position, velocity, heading, and attitude information. It supports automated path planning, intuitive one-click return, and real-time motion tracking with visual reference of historical paths. Users benefit from efficient, self-guided movement and detailed location and trajectory display, including custom maps and POI recording.

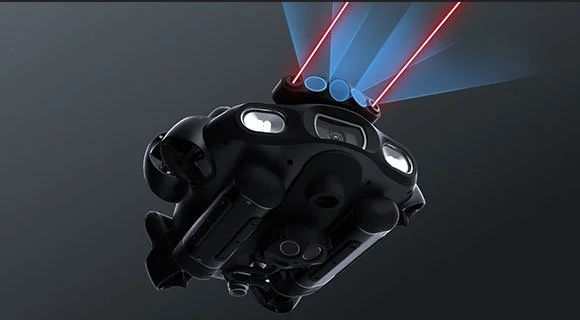

QY-MT

Real-time & Offline Smart Measurement

The QY-MT system offers advanced AI-powered underwater measurement capabilities. Utilizing the Forward Q-DVL and laser, along with proprietary AI algorithms, operators can analyze and measure underwater objects, fractures, and damage with 99.7% accuracy. The system provides users with dynamic, adaptive, and precise multi-angled measurements, real-time data visualization, and customizable displays for comprehensive and non-destructive assessments.

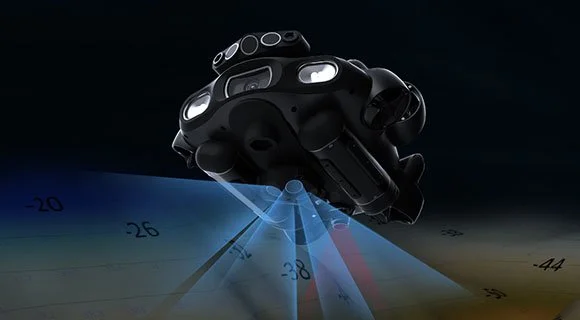

QY-BT

2D & 3D Seafloor Mapping

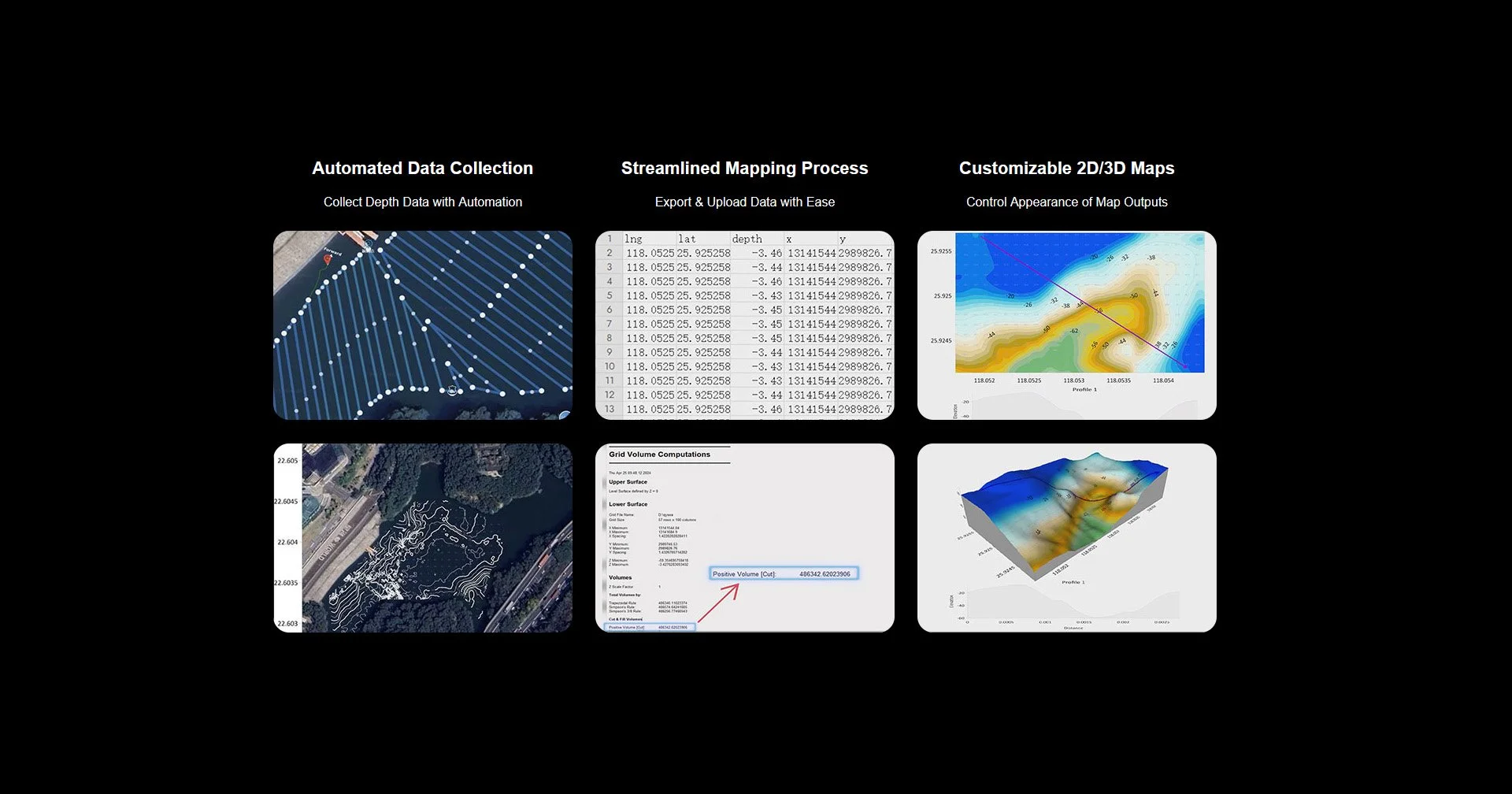

The integrated Q-DVL and Echosounder on the E-MASTER enables automated, precise underwater data collection. Users can survey seabeds, riverbeds, and reservoirs, and create customizable 2D/3D topographic maps, estimate reservoir capacities, and generate data reports with a single click. The system streamlines the mapping process and allows for efficient data collection, customizable map outputs, and seamless export and upload of data.

AI Diver Tracking

AI Diver Tracking Function, integrates QYSEA's proprietary AI underwater image filtering algorithm. Through QYSEA's independently developed underwater visual recognition technology, it identifies divers' movement poses in the footage, performs real-time automatic computation and analysis, achieving precise underwater visual locking and tracking! Serving as a safeguard for divers' lives and providing real-time monitoring of underwater situations from shore, it is indeed a reliable diving companion.

AI Dehazing Algorithms

Enhance image clarity and improve decision-making efficiency for underwater operations by
identifying and filtering out the snowflake effects caused by suspended underwater particles.

Expansive View & Focus

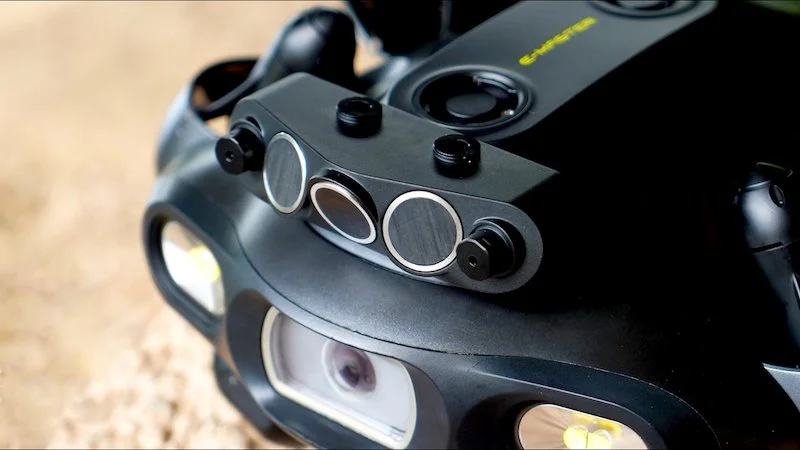

Featuring an innovative ultra-wide-angle camera lens, E-MASTER ROV provides a 176° super-wide surface view and a 146° underwater panoramic perspective, enabling operators to capture the entire underwater scene. The E-MASTER is equipped with a 1/1.8-inch CMOS sensor for 4K UHD filming and RAW format image capture.

Vivid ROV Lighting System

Boasting multi-lamp LED lights, E-MASTER ROV provides up to 10,000 lumens of brightness and a 160° beam angle with adjustable intensity across three levels.

ROV Macro Focus Precision

Supporting a 10cm extreme close-up focus underwater, E-MASTER ROV ensures precise imaging even in murky waters. Its automatic focusing capabilities allow for close-range observation, capturing accurate images and preserving every detail.

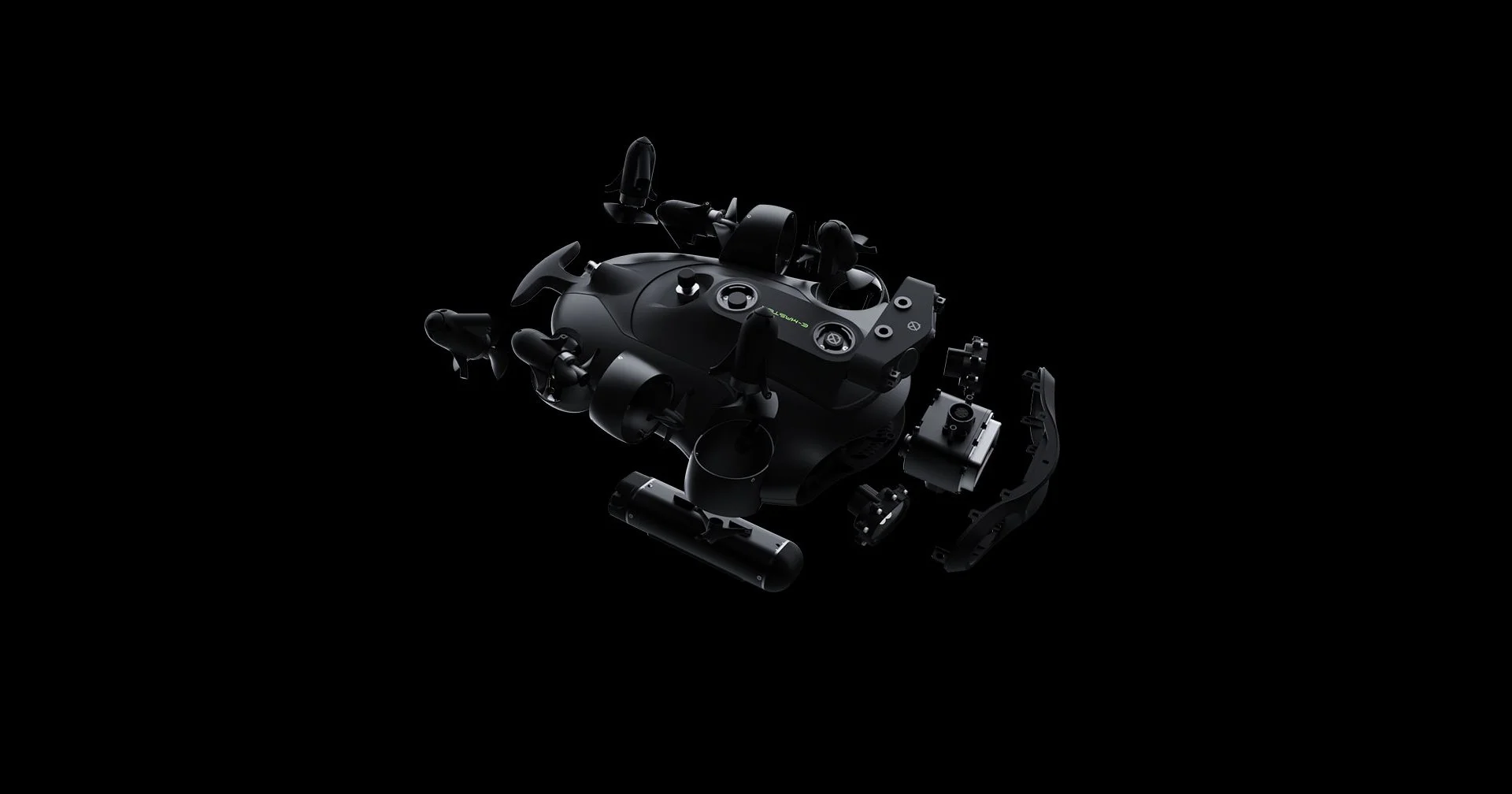

Fluid Modular Design

The E-MASTER's ROV modular architecture integrates essential components of the robot - including the motor, imaging, lighting, and battery - enabling rapid assembly, disassembly, and precise troubleshooting. Battery and accessory removal is achieved within seconds, while spare part replacement can be completed within 5 minutes, delivering a major boost to operational efficiency.

Enhanced Multi-Port Expansion

Through a meticulous internal redesign, E-MASTER ROV is equipped with dual load interfaces on both the top and bottom of the body. Utilizing professional expansion docks (optional), it can accommodate up to 6 operational tools simultaneously.

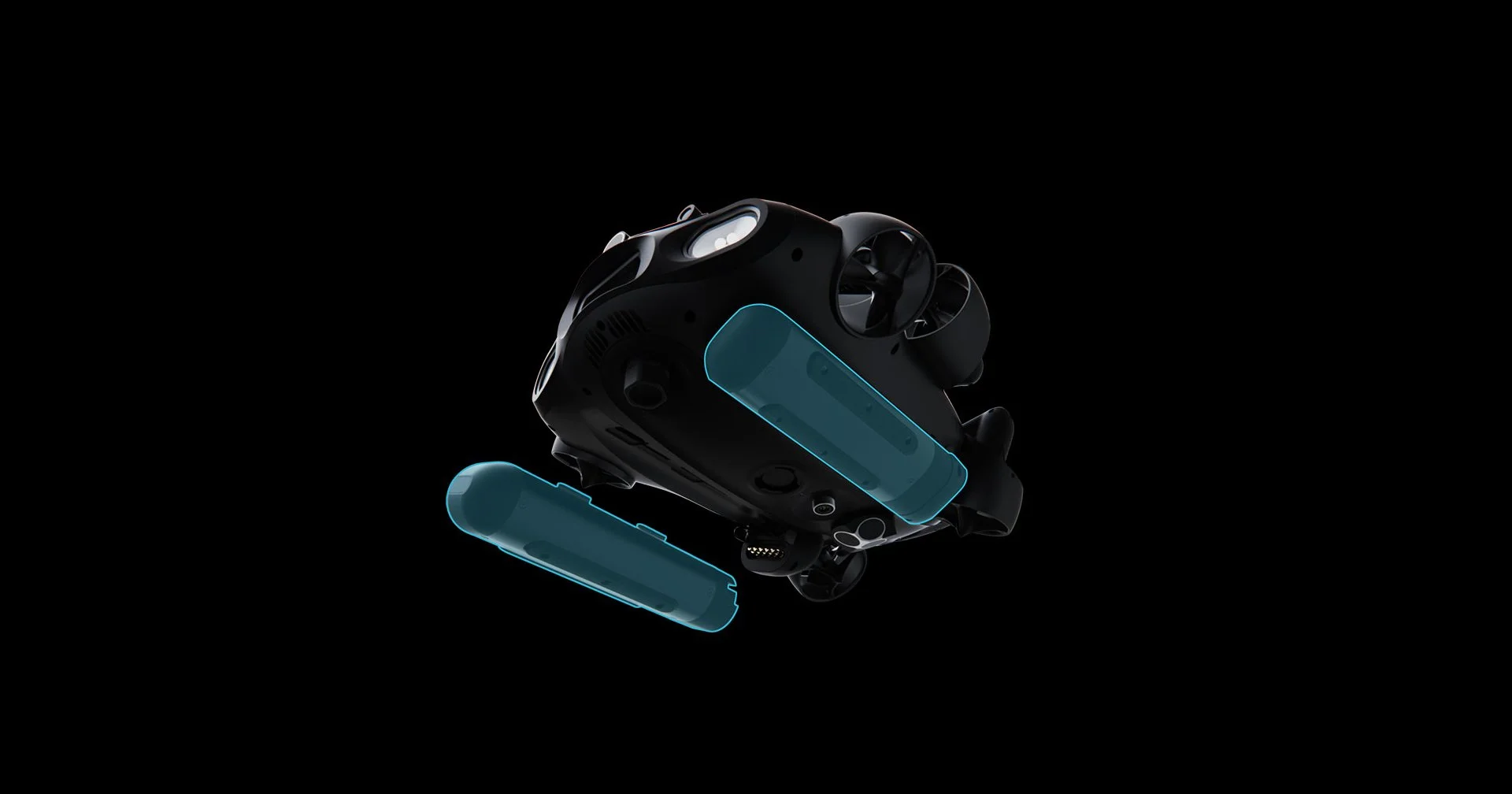

Swappable Dual Power System

E-MASTER ROV features an upgraded circuit design with a dual battery system, employing advanced hot- swappable technology. This enables seamless alternating battery replacement without powering down or restarting, instantly revitalizing E-MASTER ROV to full power.

Smart & Portable Charging Station (Optional)

E-MASTER ROV comes with the its portable smart charging platform, Q-Energy Station, with two batteries that provide 150 minutes of standard operational duration. In addition, Leverage rapid charging, with just 50 minutes to reach 90% capacity, ensuring swift charging without concerns about battery life during extended underwater missions.
