Oceanbotics SRV-8X OPTIMUS ROV
The SRV-8X Optimus ROV was developed to push the limits required for offshore and more challenging deployments where larger payload capabilities and more sensors are required for more demanding and deeper missions. The stronger thrusters provide for operating in higher currents with quicker responsiveness.
Going Further and Deeper
An optional fiber optic tether and provides for operating at depths up to 500 meters and distances of up to several kilometers. It also provides a data bandwidth in excess of 1 GB/sec.
You can add a wide variety of sensors and robotic arms as a field upgradeable “plug-n-play” installation/solution. Our SubNav-X™ software is preconfigured to recognize approved devices and work out of the box.
Enhanced Features
Larger thrusters and more powerful design of the Optimus ROV increases payload limitations and ability to work in stronger currents at deeper depths.
Available In Multiple Factory Configurations
All configurations are field upgradable with any of our integrated add-on technologies.
SRV-8X OPTIMUS ROV
Strong Thrusters · Rugged Design · Large Payload · Powerful Software
The big brother of Oceanbotics' popular SRV-8 ROV is here with the same fantastic operating performance! X-model is a very powerful ROV with depth range down to 500 m where you maintain the same intuitive mobility and performance as the SRV-8 ROV.
That makes this X-ROV well suited for tough assignments as well as "regular" positioning and inspection assignments. Especially since SubNav-X software is structured so you can choose which, or all data on the same movie and screen. Flexibility for the professional.
SRV-8X OPTIMUS ROV | DSS KIT
The SRV-8X Digital Surface Station (DSS) Includes:
Rugged Laptop w/SubNav Software, Vehicle, two litiumbatteries, analog/digital camera, two llights, X-box controller, reel w/100m tether, two auxiliary connectors for external ethernet and serial devices, shipping/carrying cases with wheels and battery charger. Also included basic spares kit and trim.
250 m tether
SRV-8X OPTIMUS ROV
X-Box Controller
Rugged Laptop
2 Hot Swappeble Batteries
All data in the same screen
choose the window setup that is best for your mission
SubNav-X™
SubNav-X integrates seamless accessories for ease of use and all-in-one experience. Oceanbotics SRV-8X ROV is intuitive with flexible software that shows a powerful ROV that is modern and designed to be easy to use and works well with various accessories.
SRV-8X ROV Software allows you to customize your mission.
It will be easy to plan your project!
SRV-8X OPTIMUS ROV - MDV
SRV-8X OPTIMUS ROV - MDV (Mine Disposal Vehicle)
Mine Disposal Vehicle
Remotely Operated Underwater Vehicle for Naval Mine Countermeausres
The SRV-8X Mine Disposal Vehicle (MDV) is a military-grade remotely operated underwater vehicle (ROV) specifically designed to assist naval Explosive Ordnance Disposal (EOD) teams in detecting and neutralizing naval mines and unexploded ordinance (UXO) Trusted by commercial and military professionals worldwide, these user-friendly ROVs deliver reliable performance in mine countermeasures (MCM) operations, providing a safer alternative to traditional clearance diver methods.
This is more about 8X ROV MDV
With a quick deployment time of under three minutes, the SRV-8X MDV allows teams to respond swiftly to underwater threats. As part of Oceanbotics’ Special Purpose Vehicle Division, it offers advanced capabilities for fast, efficient, and effective missions.
The SRV-8X MDV is the standard ROV with added mine disposal accessories. You can also customize the smaller SRV-8 ROV to fit your specific mine disposal needs.
How to Neutralize a Mine with a SRV-8 ROV MDV
Find the Mine – Use the ROV’s sonar and camera to locate the sea mine and move towards it.
Position the ROV – Move the ROV to place the charge disruptor exactly on the mine’s weak spot.
Release the Shock Tube – Let go of the shock tube and back the ROV up to a safe distance.
Move to Safety – Drive the ROV to a safe distance away from the mine.
Set Off the Explosion – Once the ROV is at a safe distance, trigger the explosion to destroy the mine safely.
Naval Mines
What are Naval Mines?
A naval mine is an underwater explosive designed to destroy ships and submarines. Even after years of lurking on the ocean floor, these mines remain dangerous, capable of exploding or leaking harmful chemicals.

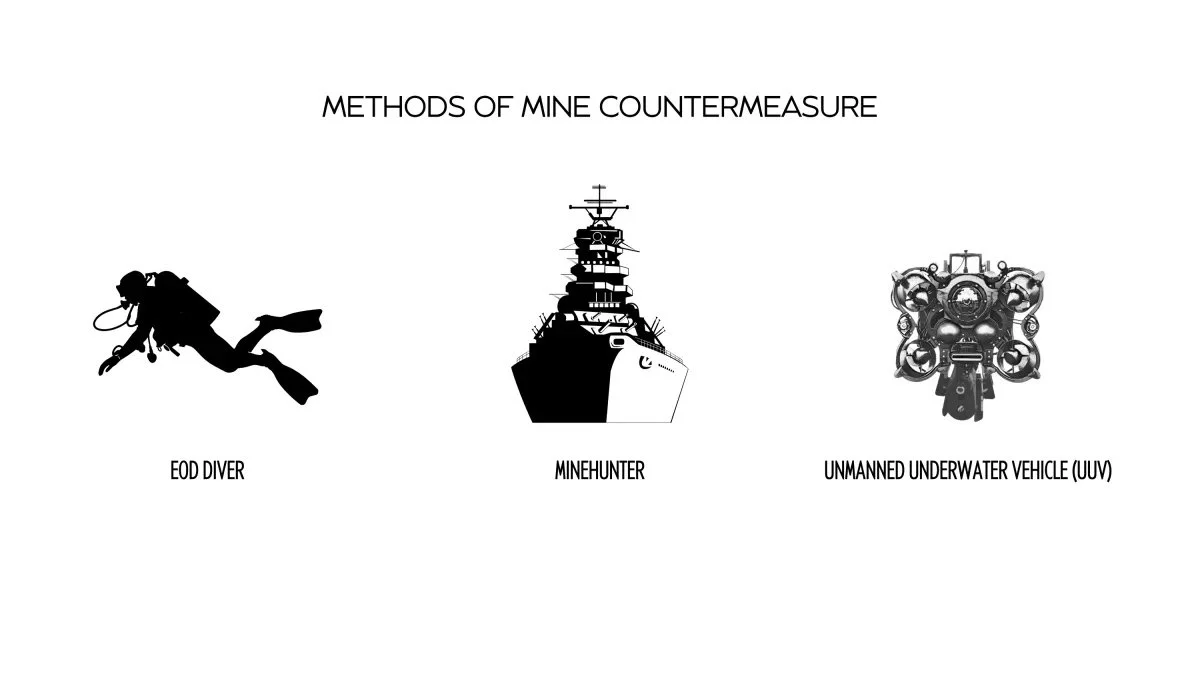

What are Mine Countermeasures (MCM)?
Mine countermeasures (MCM), also known as subsea mine neutralization, involve safely identifying and neutralizing unexploded ordinance (UXO) such as underwater sea mines. These operations are typically carried out using trained clearance divers, specialized ships, or unmanned underwater vehicles (UUVs). These operations involve navigating to the identified mine’s location—whether it is floating, anchored, or resting on the seabed—and neutralizing the threat.
The ultimate goal of MCM is to ensure safe waterways and protect ships by eliminating the danger posed by mines.
ROVs Protect Divers
Remotely operated underwater vehicles (ROVs) provide naval EOD teams with a safer way to neutralize ocean mines, eliminating the need to place clearance divers in harm’s way. These advanced underwater drones are specifically designed to deliver fast and efficient solutions while keeping personnel out of danger. Customized for inspection and mine disposal, ROVs streamline operations and enhance safety during the detonation of underwater threats.
Military teams trust the SRV-8X MDV because it stands out in cost-efficiency, ease of use, and time-saving performance. ROV pilots can master controls quickly thanks to our user-friendly design and intuitive software. With the ability to neutralize threats efficiently, these underwater drones save both time and costs, making them an indispensable asset for EOD missions.
Key Features of the SRV-8X Mine Disposal Vehicle
| COMPONENT | DESCRIPTION | |
|---|---|---|
| SRV-8X Remotely Operated Vehicle (ROV) | Military-grade SRV-8X remotely operated underwater vehicle trusted by industry professionals. | |
| Viper MDS, IED Neutralisation System | A safe and cost-effective firing system specifically designed for the disposal of IED threats, mines, and historic ordnance (from ECS Special Projects Ltd.) | |
| Spooled Shock Tube | A coiled explosive delivery system used to safely send a signal to set off explosives. | |
| 2-Dimensional Multi-Beam Imaging Sonar | An imaging sonar system uses several sound beams to scan underwater, creating clear 2D images to find and identify ocean mines. | |
| USBL Positioning System | Navigation technology helps track and determine the precise location of underwater vehicles, like ROVs. |
ACOUSTIC (SONAR) TRACKING SYSTEM
SRV-8X ROV OPTIMUS ATS - Acoustic (sonar) Tracking System
This is more about ATS
The SRV-8X Optimus ATS is an exceptional remotely operated underwater vehicle (ROV) engineered to detect pingers & transponders used to identify precise underwater locations.
A prime example includes underwater locator beacons (ULBs) affixed to black boxes (flight recorders), commonly found on commercial aircraft. When directed towards an acoustic beacon, the ATS receives an audio signal, providing information about the exact location of the target. Oceanbotics incorporated these navigation capabilities into its SubNav-X OS software, which is known for its intuitive design and user-friendly experience. Utilizing a signal strength meter, the software precisely determines the beacon’s location by analyzing the characteristics of the audio tone.
The SRV-8X Optimus ATS is also capable of discreetly identifying sonar transponders without revealing their positions, rendering it a highly valuable resource for operations that require absolute confidentiality. With the aid of a conventional gaming controller, the operator can navigate and pinpoint the beacons and transponders with ease. This state-of-the-art technology significantly enhances sonar detection, empowering professionals in defense and search & rescue sectors.
Customize the SRV-8X OPTIMUS ROV for Any Mission
RJE Oceanbotics™ SRV-8X come equipped with the SubNav-X™ software as well as additional external connection ports for easy integration with a variety of partner accessories. Professionals who are working hard in various industries across the globe can customize the SRV-8X with equipment crucial to the mission at hand.
Designed to tackle a wide variety of missions, the SRV-8X underwater drone can be used for inspecting infrastructure such as bridges, piers and pipelines, or deployed in a search and recovery mission with equal ease. And, while this ROV is fully capable in its basic configuration, its utility can be enhanced with accessories.
Technical data
Length: 64 cm, Height: 43cm, Width: 51cm, Weight: 25,4kg
Dual hot-swappable battery modules
8 brushless DC thrusters
Battery: Up to 8 hours
Battery source: Dual hot-swappable battery modules
Ultimate Maneuverability with DVC (Dynamic Vector Control)
6 Degrees of Freedom – Full movement in any direction.
Depth down to 500 meters (1640ft)
HD Camera – Total camera tilt range 140 degrees
Lights: 4ea Reach Robotics Lights (6000 Lumen Total)
Navigation: Commercial grade AHRS/IMU, precise Heading, Attitude, Pitch & Yaw
Depth sensor (meters or feet), temperature (°C or °F) turns counter, sensors for heading and depth, humidity sensor
External sensor inputs: 2ea extarnal devices via RS232 or RS485 4ea external devices via Ethernet, Fiber optic tether ready
Grabber: 3-Jaw grabber, Cutter, Sediment Sampler (heads interchangeable)
Reel: 400 meter (1,312ft) capacity with slip ring Fiber optic tether management system avaible
Xbox or Alpha Flight-stick
Rugged PC Notebook, Digital Integration Module Or, Mobile Pilot Station/rugged Tablet Option
Best in Class SubNav-X™ software seamlessly integrates
Transport cases with wheels
Sonar option: Oculus 3D imaging Sonar Fully Integrated with SubNav Software
Navigation option: Seatrac USBL Navigation Fully Integrated with SubNav Software
Select the correct ROV For Your Mission
| SPECIFICTION | SRV-8 | SRV-8X Optimus |
|---|---|---|
| Length | 50 cm (19.5 in) | 64 cm (25 in) |
| Width | 43 cm (17 in) | 53 cm (21 in) |
| Height | 33 cm (13 in) | 51 cm (20 in) |
| Weight | 18.6 kg (41 lb) | 25 kg (55 lb) |
| Depth Rating | 305 m | 500 m |
| Number of Thrusters | 8 Brushless Thrusters | 8 Brushless Thrusters |
| Number of Lights | 2 (3000 lumens total) | 4 (6000 lumens total) |
| Resolution | 1080p (4k optional) | 1080p (4k optional) |
| Hot-Swappable Batteries | yes | yes |
| Battery Life | up to 8 hours | up to 8 hours |
| Recharge Time | 2-3 hours | 2-3 hours |
| Included Software | SubNav OS (closed source) | SubNav OS (closed source) |
| Copper Tether (standard) | yes | yes |
| Diameter | 4.5 mm | 4.5 mm |
| Length | 305 m (1,000 ft) | 500 m (1,640 ft) |
| Fiberoptic Tether (optional) | yes | yes |
| Diameter | 4.3 mm | 4.3 mm |
| Length | up to 3 km | up to 3 km |
